二碲化鉬晶體 1T-MoTe2(Molybdenum Ditelluride)
晶體尺寸：~10毫米
電學特性：金屬
晶體結構：單斜晶系
晶胞參數：a = 0.621 nm, b = 0.347 nm, c = 1.383 nm, α = γ = 90°, β = 93.83 °
晶體類型：合成
晶體純度：＞99.995%

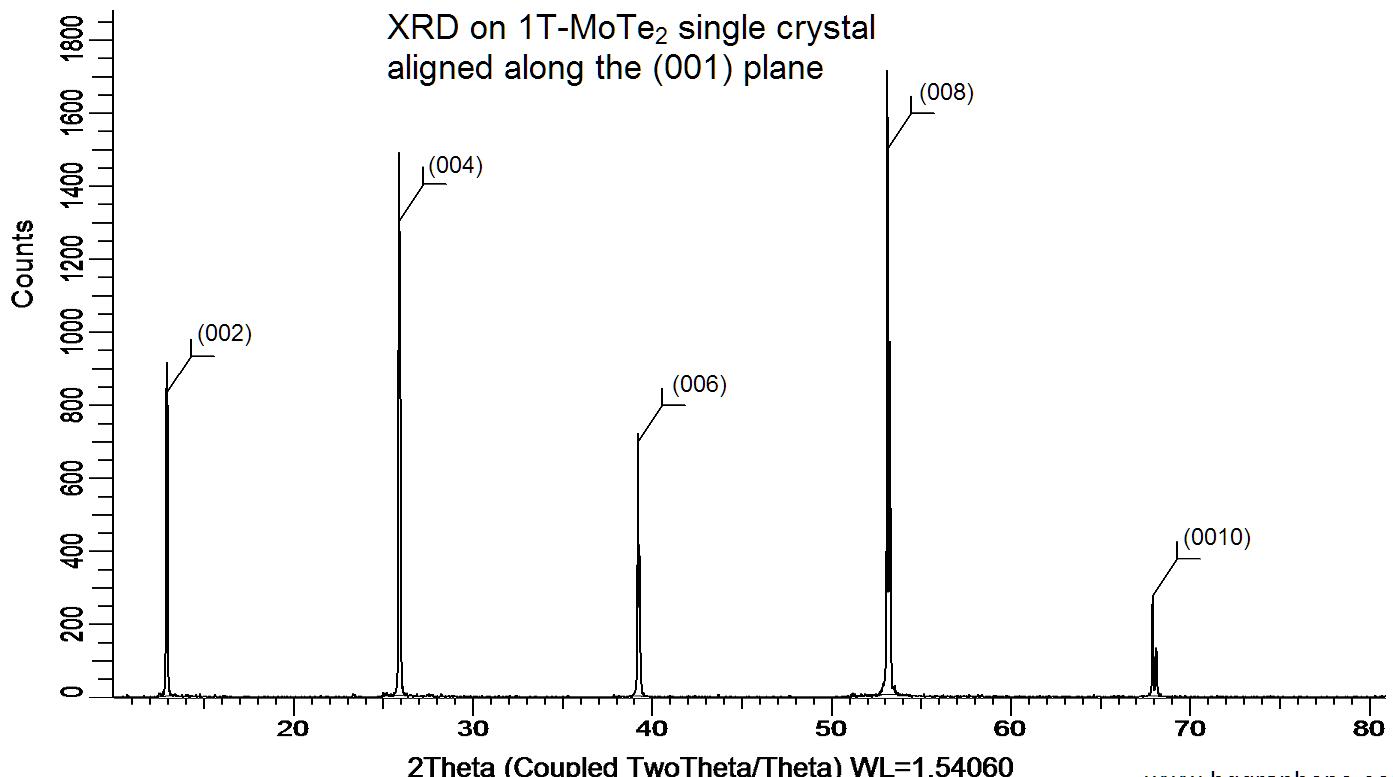

X-ray diffraction on a 1T'-MoTe2 single crystal aligned along the (001) plane. XRD was performed at room temperature using a D8 Venture Bruker. The 5 XRD peaks correspond, from left to right, to (00l) with l = 2, 4, 6, 8, 10

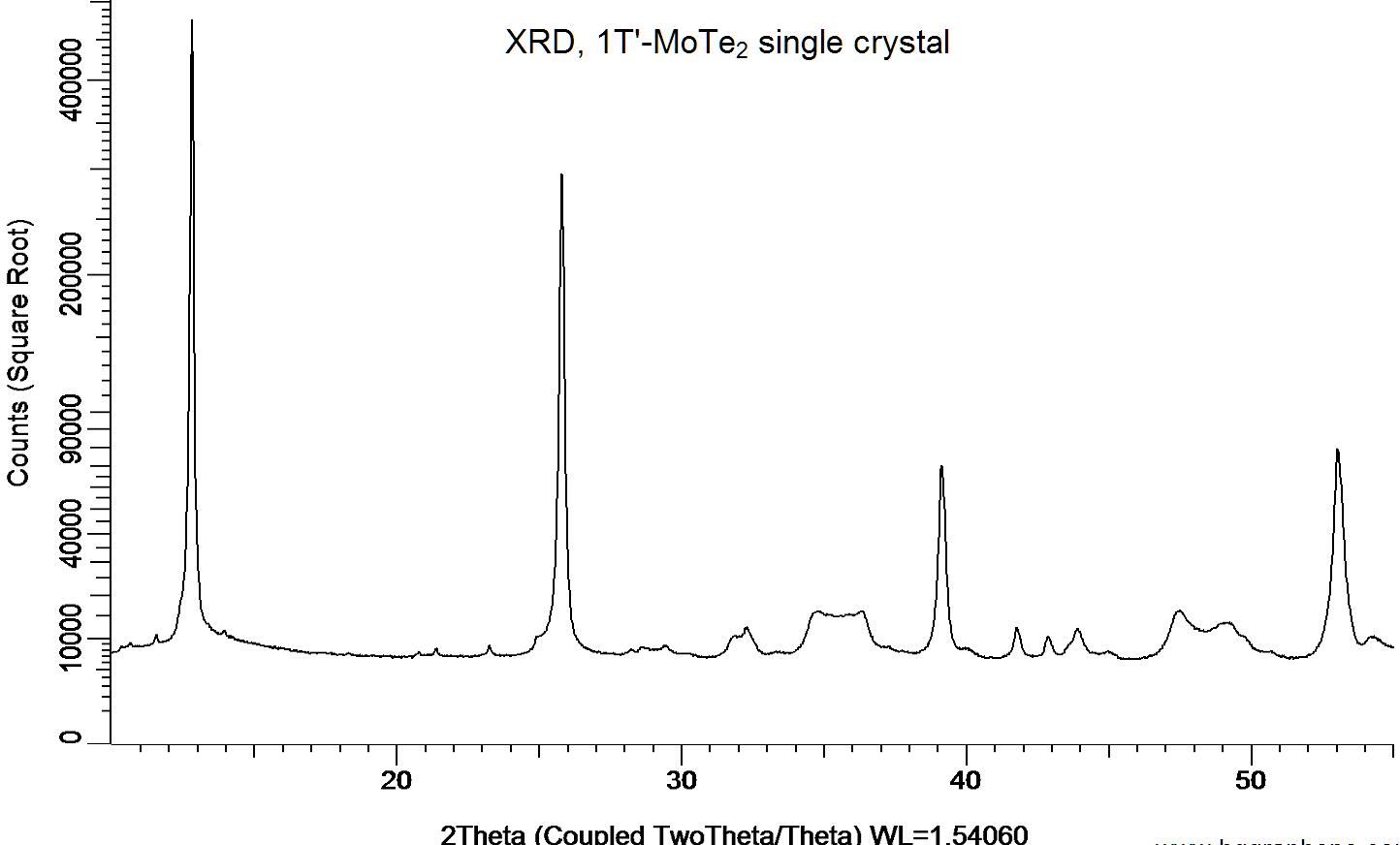

Powder X-ray diffraction (XRD) of a single crystal 1T'-MoTe2. X-ray diffraction was performed at room temperature using a D8 Venture Bruker.

Stoichiometric analysis of a single crystal 1T'-MoTe2 by Energy-dispersive X-ray spectroscopy (EDX).

Raman spectrum of a single crystal 1T'-MoTe2. Measurement was performed with a 785 nm Raman system at room temperature.
