德國HALLE深度計量校準片 PTB-Standard Depth-Setting-Standard with round grooves

在許多工業領域中，表面粗糙度測量起著重要的作用，德國HALLE提供各種國際標準的計較校準片，如粗糙度校準，深度校準，平坦度校準等，所有計量校準片均由PTB或DKD認證證書；

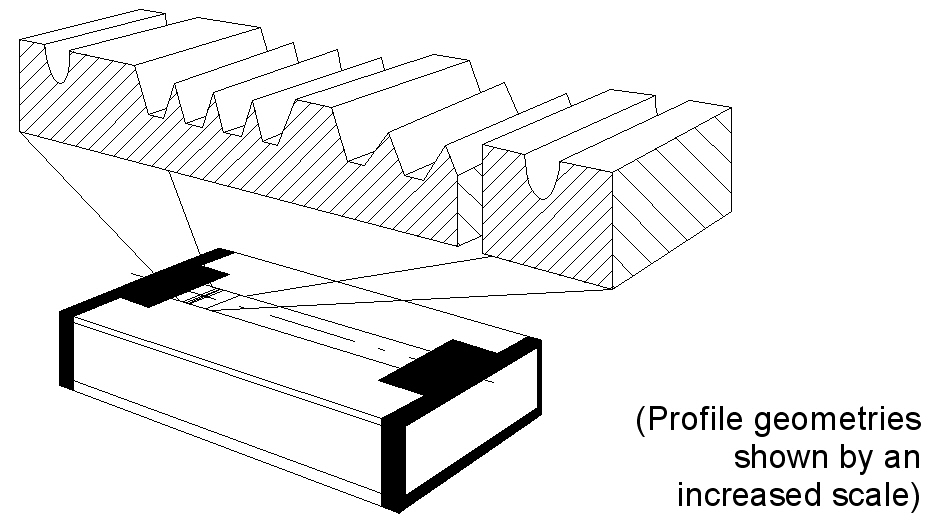

Depth-Setting-Standard with round grooves
Line of products:KNT 2060/01
Corresponding to PTB-Standard for adjusting and calibration of the vertical magnification of contact stylus instruments 3 grooves 1/4/9 um (nominal)
Item NO.:2060/01/3/PK (PTB calibration)

Designation

ISO-Type 5436-1

Design

Line of product

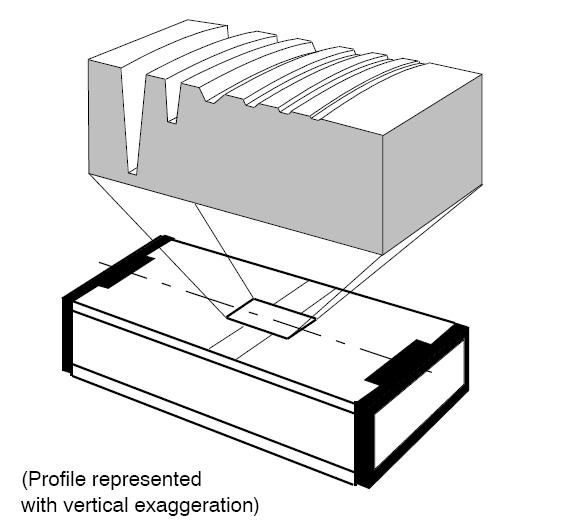

Stylus tip control standard

Type B

3 x 3 taper angles with
70°, 90° und 120°

KNT 4050/01

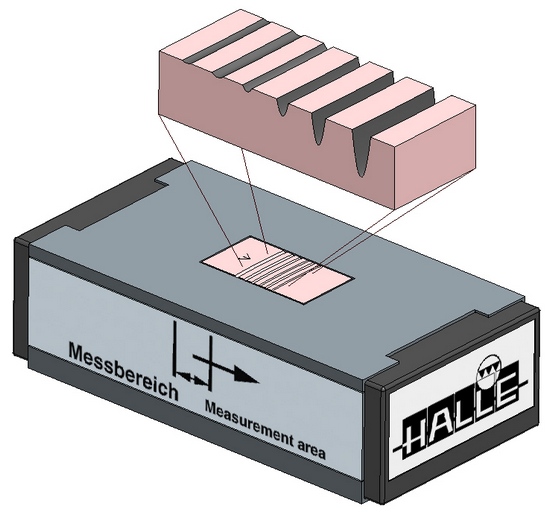

Depth setting standards

Type A

with round base grooves
(6 grooves and 3 grooves)

KNT 4060/03

Depth setting standards

Type A

with planar grooves

KNT 4080/03

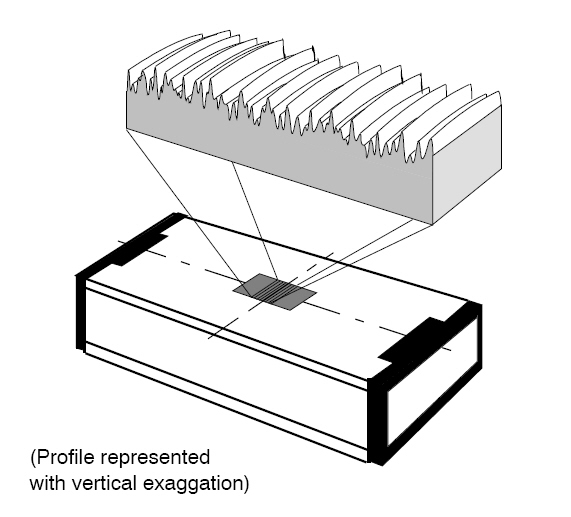

Roughness measurement
standards

Type D

standard

KNT 4058/01

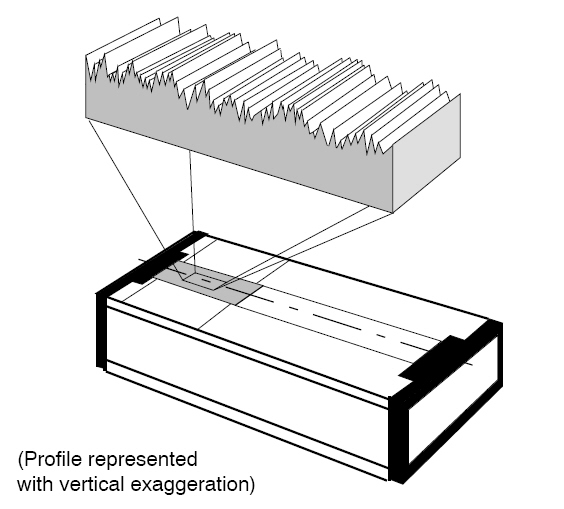

Roughness measurement
standards

Type D

inexpensive version

KNT 4058/03

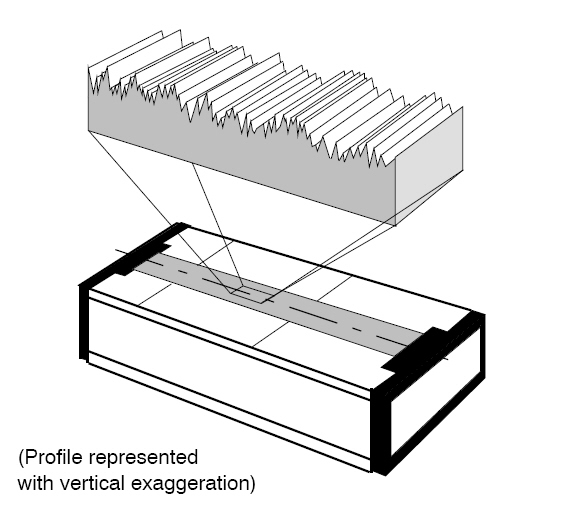

Roughness measurement
standards

Type D

for sheet metal surfaces

KNT 4058/02

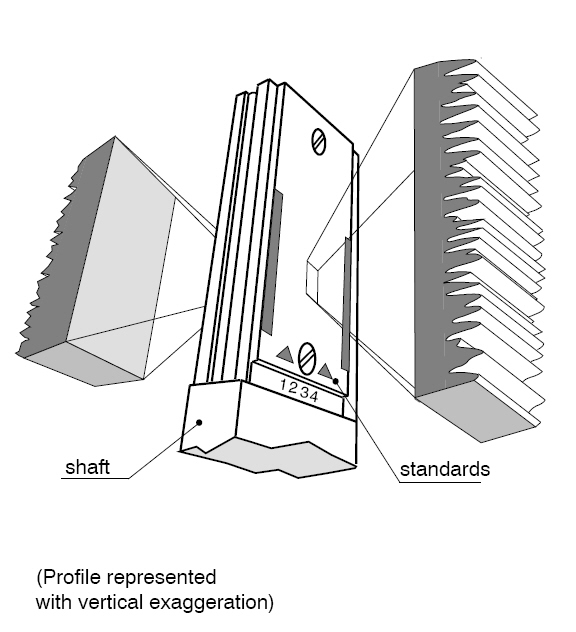

Roughness measurement
standards

Type D

for sheet metal measuring
stations
(for 2+4 Two-Button Stylus)

KNT 2058/05

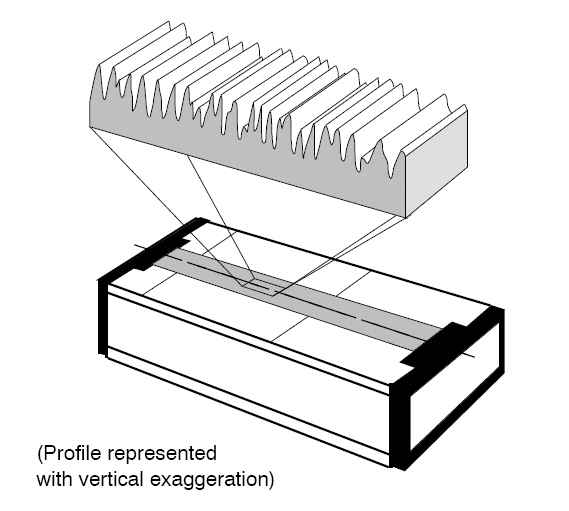

Roughness measurement
standards

Type D

superfine roughness profile

KNT 4070/03

Calibration costs
for recalibration

Comparison standards
for surface roughness

VOR 2090/01

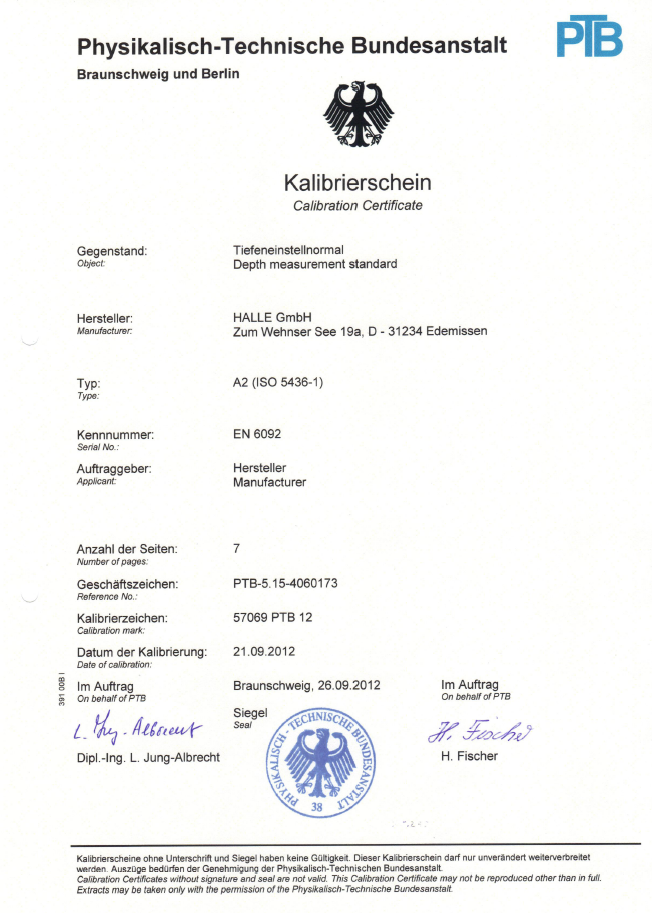

PTB Certificate
